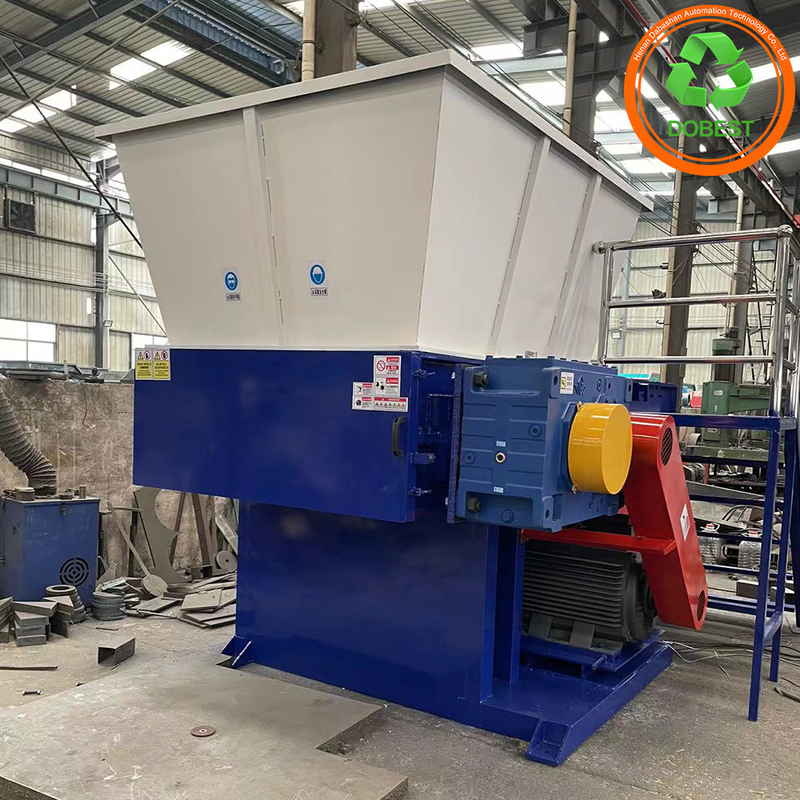

High Capacity Custom Fabric Clothes Shredder for Scrap Recycling Single Shaft Design

Name: High Capacity Custom Fabric Clothes Shredder for Scrap Recycling Single Shaft Design
Brand: DOBEST
SKU: 1200
Price: 33 USD
Availability: InStock
Rating: 4.7 (147 reviews)

Product Details

Place of Origin: China

Brand Name: DOBEST

Model Number: 1200

Payment & Shipping Terms

Price: $33,000.00/sets 1-4 sets

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Condition:	New	Applicable Industries:	Manufacturing Plant, Scrap Recycling Factory
Showroom Location:	None	Type:	Scrap Shredder Machine
Warranty:	1 Year	Power:	90
Production Capacity:	1500-2500kg/h	Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided	Marketing Type:	New Product 2020
Warranty Of Core Components:	1 Year	Core Components:	Motor, PLC, Engine, Gearbox, Hydraulic-driven Pusher
Weight (KG):	4000 Kg

Condition:	New
Applicable Industries:	Manufacturing Plant, Scrap Recycling Factory
Showroom Location:	None
Type:	Scrap Shredder Machine
Warranty:	1 Year
Power:	90
Production Capacity:	1500-2500kg/h
Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided
Marketing Type:	New Product 2020
Warranty Of Core Components:	1 Year
Core Components:	Motor, PLC, Engine, Gearbox, Hydraulic-driven Pusher
Weight (KG):	4000 Kg

Description

High Capacity Custom Fabric Clothes Shredder for Scrap Recycling Single Shaft Design

Model	Cutter diameter （MM）	Shredding chamber size （MM）	Output （KG/H）	Power （KW）	Dimensions (MM)	Weight (KG)
600	260	600×600	300-500	25	2200×1400×1900	2500
800	300	800×800	500-800	49	2800×1700×1900	2800
1000	350	1000×1000	800-1500	50.5	2800×2000×2100	3500
1200	400	1200×1200	1500-2500	95.5	3650×2300×2860	4000
1400	450	1400×1400	2500-4000	117.5	4100×2400×2950	4000

Product Description

Single-shaft shredders can meet the scrap recycling requirements of various industries. The single-shaft shredder can shred materials with strong winding properties and large materials containing light and thin metals. It is mainly suitable for shredding wood, rubber, plastic, paper, fiber, domestic waste recycling, briquetting cans and other materials. There are many types of recyclable materials.

Suitable for recycling various large solid materials, difficult-to-handle materials, plastic containers, plastic barrels, and plastic pads.

The discharge size can be customized according to different needs. And various feeding hoppers can be provided according to customer needs. This equipment has low-speed rotary cutter, low noise and is more energy-saving.

Shredder Rotor

It is made of high-strength and heavy-duty special steel and is more reasonably matched with the cutting tool to provide powerful power for cutting.

Blade

The blade is made of cold-work die steel, which has good strength, high toughness, and high cutting performance.The blade has four cutting edges and can be rotated 90° after wear for continued use.Blade quality have 9CrSi, Cr12MoV, SKD- II, D2 etc. Can be customized according to customer.

Screen

Special screen can be customized according to the type of your raw materials.

Hydraulic-driven pusher

Hydraulic-driven pusher adopts advanced sealing design, can remove the dust in shredding process.

Bearing box

It is mainly suitable for shredding non-metallic materials such as wood, rubber, plastic, paper, fiber, and domestic waste recycling.

PLC electrical control cabinet

The single-shaft shredder is mainly composed of a blade spindle, a fixed knife, a load-bearing box, a box bracket, a feeding system, a hydraulic pushing system, a power system, and an PLC electrical control system.

Case Bracket

The material enters the machine case from the feeding hopper, and the pushing box pushes the material to the rotary knife under the push of the hydraulic cylinder.

OEM & ODM

We can customize the machine for u.u can tell us your requirements,we will design the drawing for machine.

Company Profile

Henan Dabashan Automation Technology Co., Ltd. are a professional supplier specializing in the production and development of environmentally friendly recycling equipment. We mainly produce waste lithium battery crushing and recycling equipment, lithium battery positive electrode sheet recycling and processing equipment, lithium battery negative electrode sheet recycling and processing equipment, lithium battery discharge equipment, and lithium battery module disassembly. Equipment, lithium battery ladder utilization equipment, circuit board crushing and recycling equipment, circuit board disassembly equipment, capacitor crushing equipment, high-voltage electrostatic separation equipment, etc. The environmentally friendly supporting equipment produced at the same time includes single-shaft shredders, double-shaft shredders, metal crushers, plastic crushers, etc. We can provide systematic overall design solutions and construction plans.

These production lines mainly use physical recycling methods, do not require the use of chemical reagents, and consume less energy. They are green and low-carbon, energy-saving and environmentally friendly, and have no secondary pollution.

In China, we have successfully established nearly a hundred waste lithium battery recycling equipment production lines, and have also sold them to Russia, Kazakhstan, India, Indonesia, Turkey, Canada, Africa and other countries and regions.

In order to better serve our customers, we have been striving to pursue and build high-value equipment as our goal, and move forward!

More than 10 years experience on Environmental recycling equipment. R&D team keeps sustained technology improving and developing. Strict production and full process monitoring management. ISO9001、ISO14001、ISO45001、CE certification. OEM/ODM services. Self owned professional R&D capacity.

Package & Shipping

Exhibition

FAQ

1.Why Choose Us? 1)With rich experience:We have very rich experience in manufacturing and selling Scrap recycling machinery. 2)With professional design and sales team:we can serve you perfect solution with competitive price well. 3)With reliable quality:Use the best raw materials to ensure the machine works stably and efficiently for a long time. 4)With cost-efficient and high quality, Our machines are popular among customers around the world.

2.What Is Our Service? 1). According to the customers' special requirements,we can provide the most suitable project design, process design and the purchase program with free fee. Guide customers to choose the best and economical plant, recover investment within short time. 2). Welcome to visit our factory to test the machine. And we will customize the equipment strictly according to your special requirements and arrange the timely delivery. 3). We often provide one year warranty after-sale service for our machine,If you order our machines.According to your need,our engineers will guide the installation,commissioning or training your workers on online or offline.

3.How Do You Ensure The Plastic Shredder Machine Quality? You can send your sample scrap materials to us and we will test the machine for you without charging the fees. And we can send the machine test video to you. We will send you our machine video After the machine is manufactured.

4.How About The Motor? We use domestic Chinese-famous motors,but you can choose Siemens or other brand motor as your requirement.
