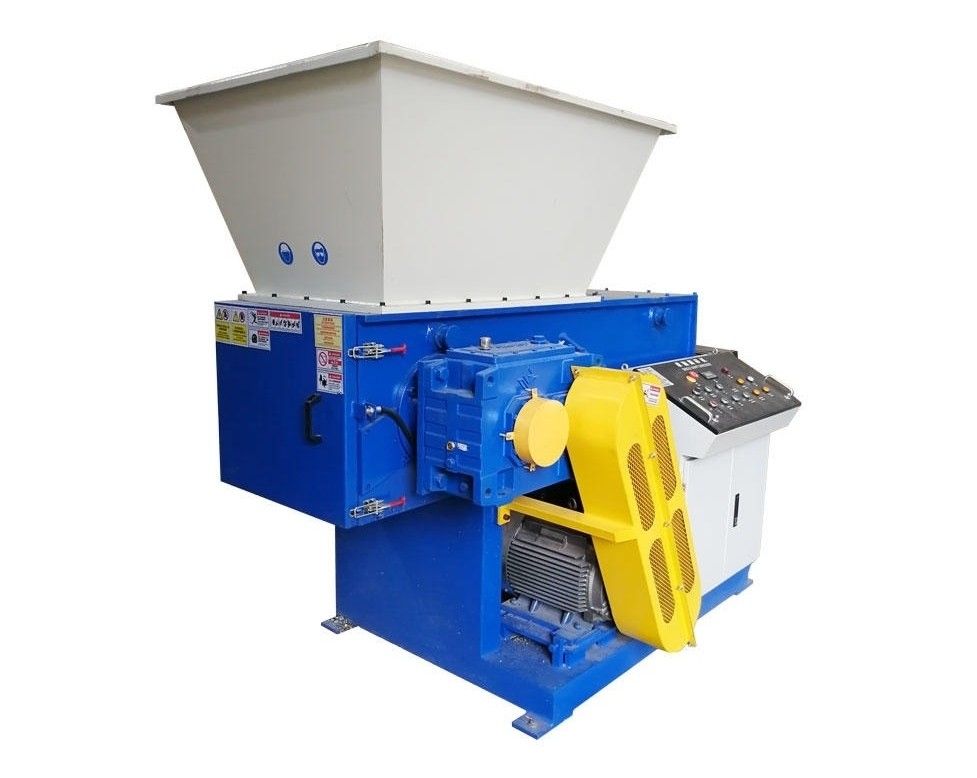

800kg/h Capacity Single Shaft Shredder for Wood Plastic Shredder by Professional

Name: 800kg/h Capacity Single Shaft Shredder for Wood Plastic Shredder by Professional
Brand: DOBEST
SKU: 800
Price: 32 USD
Availability: InStock
Rating: 4.8 (145 reviews)

Product Details

Place of Origin: Henan, China

Brand Name: DOBEST

Model Number: 800

Payment & Shipping Terms

Price: $32,000.00/sets 1-4 sets

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Condition:	New	Applicable Industries:	Building Material Shops, Manufacturing Plant, Other
Showroom Location:	Japan	Type:	Waste Treatment, Environment-friendly
Warranty:	1 Year	Power:	49
Material:	Wooden Case	Production Capacity:	800kg/h
Machinery Test Report:	Provided	Video Outgoing-inspection:	Provided
Marketing Type:	Hot Sale 2024	Warranty Of Core Components:	1 Year
Core Components:	Gearbox	Weight (KG):	2800 Kg
Application:	E Waste Treatment	Machinery Type:	Plastic Shredder
Keywords:	Waste Recycling Plant Sorting

Condition:	New
Applicable Industries:	Building Material Shops, Manufacturing Plant, Other
Showroom Location:	Japan
Type:	Waste Treatment, Environment-friendly
Warranty:	1 Year
Power:	49
Material:	Wooden Case
Production Capacity:	800kg/h
Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided
Marketing Type:	Hot Sale 2024
Warranty Of Core Components:	1 Year
Core Components:	Gearbox
Weight (KG):	2800 Kg
Application:	E Waste Treatment
Machinery Type:	Plastic Shredder
Keywords:	Waste Recycling Plant Sorting

Description

800kg/h Capacity Single Shaft Shredder for Wood Plastic Shredder by Professional

Model	Cutter diameter （MM）	Shredding chamber size （MM）	Output （KG/H）	Power （KW）	Dimensions (MM)	Weight (KG)
600	260	600×600	300-500	25	2200×1400×1900	2500
800	300	800×800	500-800	49	2800×1700×1900	2800
1000	350	1000×1000	800-1500	50.5	2800×2000×2100	3500
1200	400	1200×1200	1500-2500	95.5	3650×2300×2860	4000
1400	450	1400×1400	2500-4000	110	4100×2400×2950	4000

Product Description

The single-shaft shredder can meet the waste recycling requirements of various industries and is suitable for recycling plastics, paper, wood, fiber, rubber, domestic waste, etc., and there are a wide variety of recyclable materials.The products is suitable for recycling various bulk solid materials, refractory materials, plastic containers and barrels, and plastic pads.

The output size can be customized according to different needs. And can provide all kinds of feeding hoppers according to customer needs.

Bearing box

It is mainly suitable for shredding non-metallic materials such as wood, rubber, plastic, paper, fiber, and domestic waste recycling.

Electrical control cabinet

The single-shaft shredder is mainly composed of a blade spindle, a fixed knife, a load-bearing box, a box bracket, a feeding system, a hydraulic pushing system, a power system, and an electrical control system.

Blade

The blade is made of cold-work die steel, which has good strength, high toughness, and high cutting performance. The blade has four cutting edges and can be rotated 90° after wear for continued use.

Dynamic System

Hydraulic forced feeding, the speed is stable and adjustable, the propulsion force is large and uniform, the hard tooth reducer, the transmission efficiency is high, the bearing capacity is strong, the noise is low

Case Bracket

The material enters the machine case from the feeding hopper, and the pushing box pushes the material to the rotary knife under the push of the hydraulic cylinder. The rotating movable knife and fixed knife crush the material, and the crushed material falls through the screen, and then is transported to the next process or collected and packaged by the conveying equipment.

OEM & ODM

We can customize the machine for u.u can tell us your requirements,we will design the drawing for machine.

Company Profile

We are a company specializing in the production and development of environmentally friendly recycling equipment, mainly producing waste lithium battery crushing and recycling equipment, lithium battery positive plate recycling equipment, lithium battery negative electrode recycling equipment, lithium battery discharge equipment, lithium battery module disassembly Equipment, lithium battery cascade utilization equipment, circuit board crushing and recycling equipment, circuit board dismantling equipment, capacitor crushing equipment, high-voltage electrostatic separation equipment, etc. At the same time, the environmental supporting equipment produced includes single-shaft shredders, double-shaft shredders, metal shredders, and various pulverizers. We can provide the overall design solution and construction plan of the system.These production lines mainly adopt physical recycling methods, do not need to use chemical reagents, and have lower energy consumption. They are green, low-carbon, energy-saving and environmentally friendly, and have no secondary pollution. In China, we have successfully established nearly a hundred waste lithium battery recycling equipment production lines, and have also sold them to Russia, Kazakhstan, India, Indonesia, Turkey, Canada, Africa and other countries and regions. In order to better serve customers, we have been working hard to pursue and build high-value equipment as the goal, and forge ahead!

More than 10 years experience on Environmental recycling equipment. R&D team keeps sustained technology improving and developing. Strict production and full process monitoring management. ISO9001、ISO14001、ISO45001、CE certification. OEM/ODM services. Self owned professional R&D capacity.

Exhibition

FAQ

Q:What is your guarantee of machine ? A: Generally,our guarantee is 1 year. Q:What is the machine voltage or power of machine ? A:Usually in our country is 220v,50hz, single phase , or 380v, 50hz, 3 phase .if you have the special requirement , pls tell us before you confime order ,we will customize the voltage according to your requirement. Q: What are advantages of your company? A: We’re a professional environmental recycling equipment supplier, providing single machine or entire production line equipment.Give your trust on us, our technical and sales department provide support and service any time. Q: What are your payment terms? A: Normally, our payment method is T/T,30% as the deposit; pay off the 70% balance before delivery.Meanwhile,We also accept the L/C payment method,the final decision is based on the payment method negotiated and approved by both parties.

Q: How long does it take to make a product? A: It depends on size and type of machine.Normally, small size machine takes around 7-30 days, larger one takes around 30-90 days. Q:Does your company provide testing before shipment? A:Yes, we provide testing videos in factory for each machine before shipment.
