High Capacity Scrap Metal Recycling Double Shaft Shredder with Thickened Body Plate

Name: High Capacity Scrap Metal Recycling Double Shaft Shredder with Thickened Body Plate
Brand: DOBEST
SKU: DOBEST
Price: 5 USD
Availability: InStock
Rating: 4.5 (171 reviews)

Product Details

Place of Origin: Henan, China, Henan, China

Brand Name: DOBEST

Payment & Shipping Terms

Price: $5,700.00/sets 1-2 sets

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Condition:	New	Plastic Type:	PVC, PET, ABS, PP/PE, PE, PP, PC, PMMA, PA, PS, All Plastic
Machine Type:	Plastic Shredder	Max.Production Capacity (kg/h):	4000
Production Capacity (kg/h):	300 - 500 Kg/h	Use:	Waste Plastic Scrap Metal Crusher
Shaft Design:	Double	Voltage:	380V/50HZ/3PHASE
Dimension(LWH):	210010001650MM	Power (kW):	22
Weight (T):	1	Warranty:	1 Year
Applicable Industries:	Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Scrap Metal Recycling Factory, Waste Plastic Recycling Factory	Key Selling Points:	Multifunctional
Showroom Location:	None	Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided	Warranty Of Core Components:	1 Year
Core Components:	Motor, Engine, Gearbox	Product Name:	Scrap Metal Shredder Machine
Application:	Hard Plastic,Scrap Metal, Small Car Tires,Car Shell	Holding Knife Thickness:	1cm To 5cm
Shaft:	Double Shaft	Speed:	15-24RPM
After-sales Service Provided:	Video Technical Support	Blades Material:	9CrSi/D2/SKD-11/ Customized
Color:	Customized Color	Advantage:	Durable,Low Speed, High Torque

Condition:	New
Plastic Type:	PVC, PET, ABS, PP/PE, PE, PP, PC, PMMA, PA, PS, All Plastic
Machine Type:	Plastic Shredder
Max.Production Capacity (kg/h):	4000
Production Capacity (kg/h):	300 - 500 Kg/h
Use:	Waste Plastic Scrap Metal Crusher
Shaft Design:	Double
Voltage:	380V/50HZ/3PHASE
Dimension(LWH):	210010001650MM
Power (kW):	22
Weight (T):	1
Warranty:	1 Year
Applicable Industries:	Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Scrap Metal Recycling Factory, Waste Plastic Recycling Factory
Key Selling Points:	Multifunctional
Showroom Location:	None
Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided
Warranty Of Core Components:	1 Year
Core Components:	Motor, Engine, Gearbox
Product Name:	Scrap Metal Shredder Machine
Application:	Hard Plastic,Scrap Metal, Small Car Tires,Car Shell
Holding Knife Thickness:	1cm To 5cm
Shaft:	Double Shaft
Speed:	15-24RPM
After-sales Service Provided:	Video Technical Support
Blades Material:	9CrSi/D2/SKD-11/ Customized
Color:	Customized Color
Advantage:	Durable,Low Speed, High Torque

Description

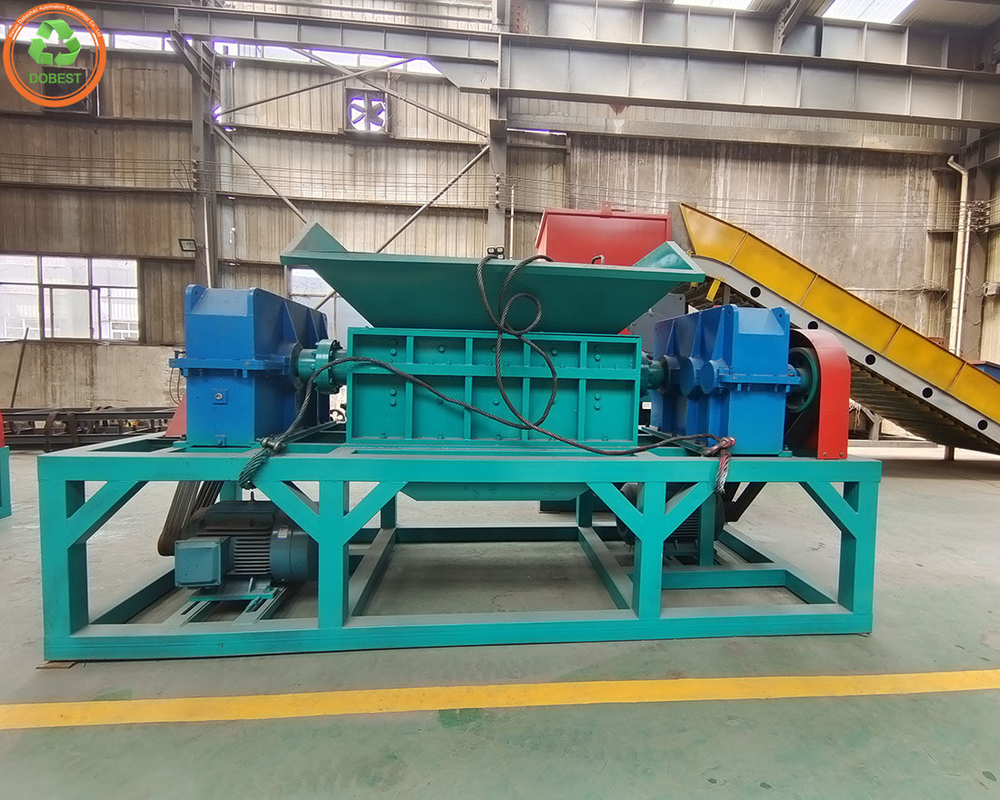

High Capacity Scrap Metal Recycling Double Shaft Shredder with Thickened Body Plate

Model	Power	Holding knife thickness	Speed	Dimension (LWH)	Weight
400	22kw	10-50MM	15-24RMP	210010001650MM	1000KG
600	30kw	10-50MM	15-24RMP	270011001850MM	1400KG
800	44kw	10-50MM	15-24RMP	370015002200MM	2500KG
1000	74kw	10-50MM	15-24RMP	400018002500MM	7000KG
1200	90kw	10-50MM	8-12RMP	420017003000MM	9000KG
1400	90kw	10-50MM	8-12RMP	430017502300MM	10000KG
1600	150kw	10-50MM	8-12RMP	500024003200MM	12000KG
1800	220kw	10-50MM	8-12RMP	620022003200MM	13000KG
2000	264kw	10-50MM	8-12RMP	700024002500MM	15000KG
Blade material: Nine-chromium silicon, chromium duted molybdenum, SKD-II, D2, etc. can be designed according to the customer's needs of single claws or multi claw and different thickness blades.

Product Description

Double shaft shredder is a strong tearing device with strong versatility. The equipment can reduce the speed of the equipment and increase the torque of the equipment. Through the powerful torque,can be used directly for the granulation and crushing of various high -hardness materials . The crushing operation is a multi -material processing double -spiral roller roller -type tear. Through the processing of the reducer, its large torque cutting tear technology can meet the needs of various waste items.

Crusher Main Body

The main body of the equipment uses steel plate welding to eliminate stress treatment/overall machine processing to ensure that the equipment is stable in long -term heavy load.

Blade

The blade is divided into: one claw, two claws, four claws, and multi claw blades. The thickness ranges from 10mm-80mm.

Design single -claws or multi claw blades and blade of different thickness according to the customer's materials and needs.

Knife shaft

Adopting high -intensity heavy loading special steel processing refining, more reasonable with the knife to provide powerful impetus for cutting.

The thickness of the shredder knife is divided into 15mm, 20mm, 40mm, 50mm, 75mm, and 100mm. The size can be selected according to the size of the object.

Motor System

Motors of well-known brands can also be configured according to customer needs. Motors and reducers adopt all copper core motors and steel plate welded reducers.

The Double Power Shredder Machine has two motors.

Product Show

Company Profile

We are a company specializing in the production and development of environmentally friendly recycling equipment, mainly producing waste lithium battery crushing and recycling equipment, lithium battery positive plate recycling equipment, lithium battery negative electrode recycling equipment, lithium battery discharge equipment, lithium battery module disassembly Equipment, lithium battery cascade utilization equipment, circuit board crushing and recycling equipment, circuit board dismantling equipment, capacitor crushing equipment, high-voltage electrostatic separation equipment, etc. At the same time, the environmental supporting equipment produced includes single-shaft shredders, double-shaft shredders, metal shredders, and various pulverizers. We can provide the overall design solution and construction plan of the system.These production lines mainly adopt physical recycling methods, do not need to use chemical reagents, and have lower energy consumption. They are green, low-carbon, energy-saving and environmentally friendly, and have no secondary pollution. In China, we have successfully established nearly a hundred waste lithium battery recycling equipment production lines, and have also sold them to Russia, Kazakhstan, India, Indonesia, Turkey, Canada, Africa and other countries and regions. In order to better serve customers, we have been working hard to pursue and build high-value equipment as the goal, and forge ahead!

More than 10 years experience on Environmental recycling equipment. R&D team keeps sustained technology improving and developing. Strict production and full process monitoring management. ISO9001、ISO14001、ISO45001、CE certification. OEM/ODM services. Self owned professional R&D capacity.

Exhibition

FAQ

1. Why Choose Us?

1)With rich experience:We have very rich experience in manufacturing and selling Scrap recycling machinery.
2)With professional design and sales team:we can serve you perfect solution with competitive price well.
3)With reliable quality:Use the best raw materials to ensure the machine works stably and efficiently for a long time.
4)With cost-efficient and high quality, Our machines are popular among customers around the world.

2. What Is Our Service?

1)According to the customers' special requirements,we can provide the most suitable project design, process design and the
purchase program with free fee. Guide customers to choose the best and economical plant, recover investment within short time.
2)Welcome to visit our factory to test the machine. And we will customize the equipment strictly according to your special
requirements and arrange the timely delivery.
3)We often provide one year warranty after-sale service for our machine,If you order our machines.According to your need,our
engineers will guide the installation,commissioning or training your workers on online or offline.

3.How Do You Ensure The Plastic Shredder Machine Quality?
You can send your sample scrap materials to us and we will test the machine for you without charging the fees. And we can send the machine test video to you. We will send you our machine video After the machine is manufactured.

4.How About The Motor?
We use domestic Chinese-famous motors,but you can choose Siemens or other brand motor as your requirement.
